Audio IEM LCP Connector CIEM 2pin/MMCX

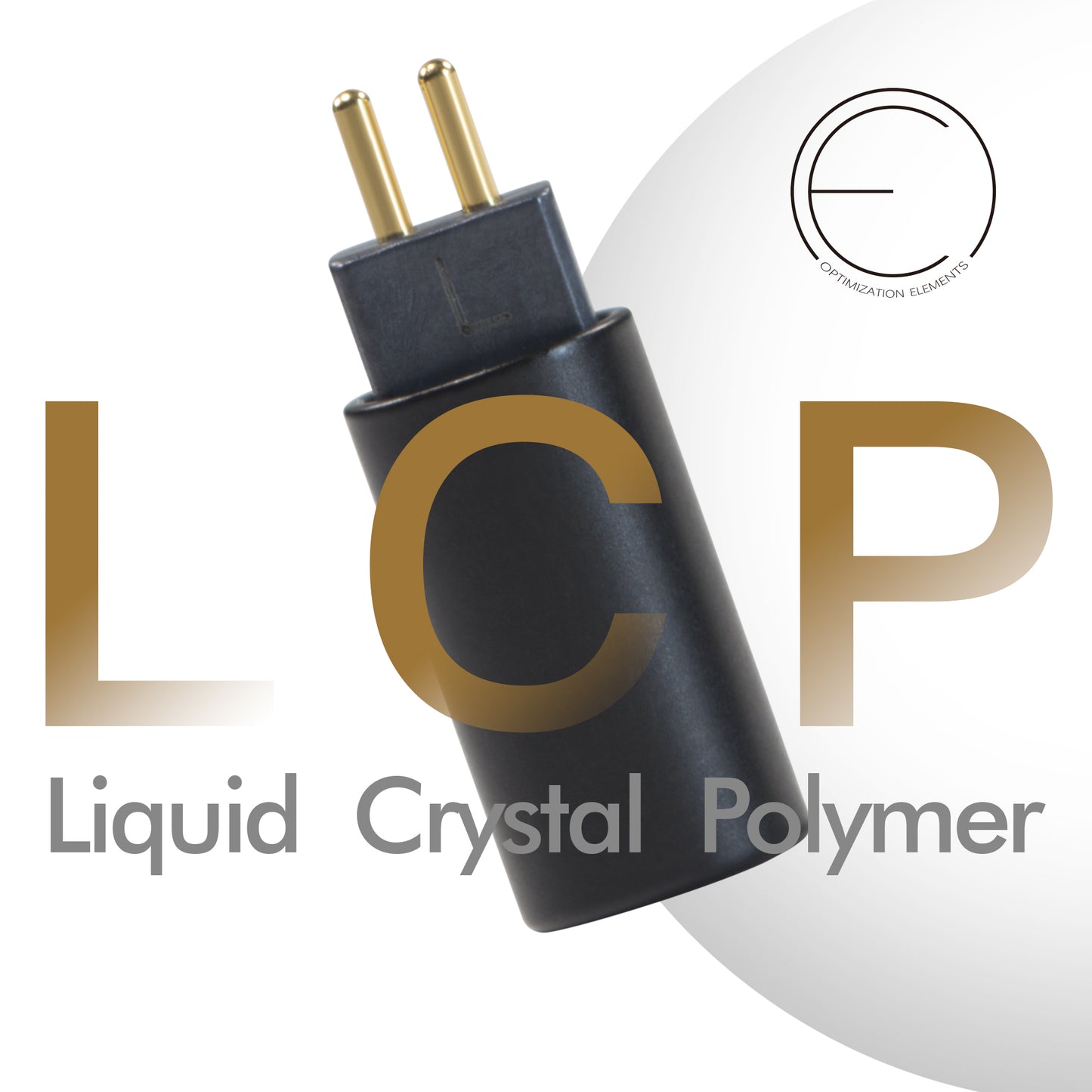

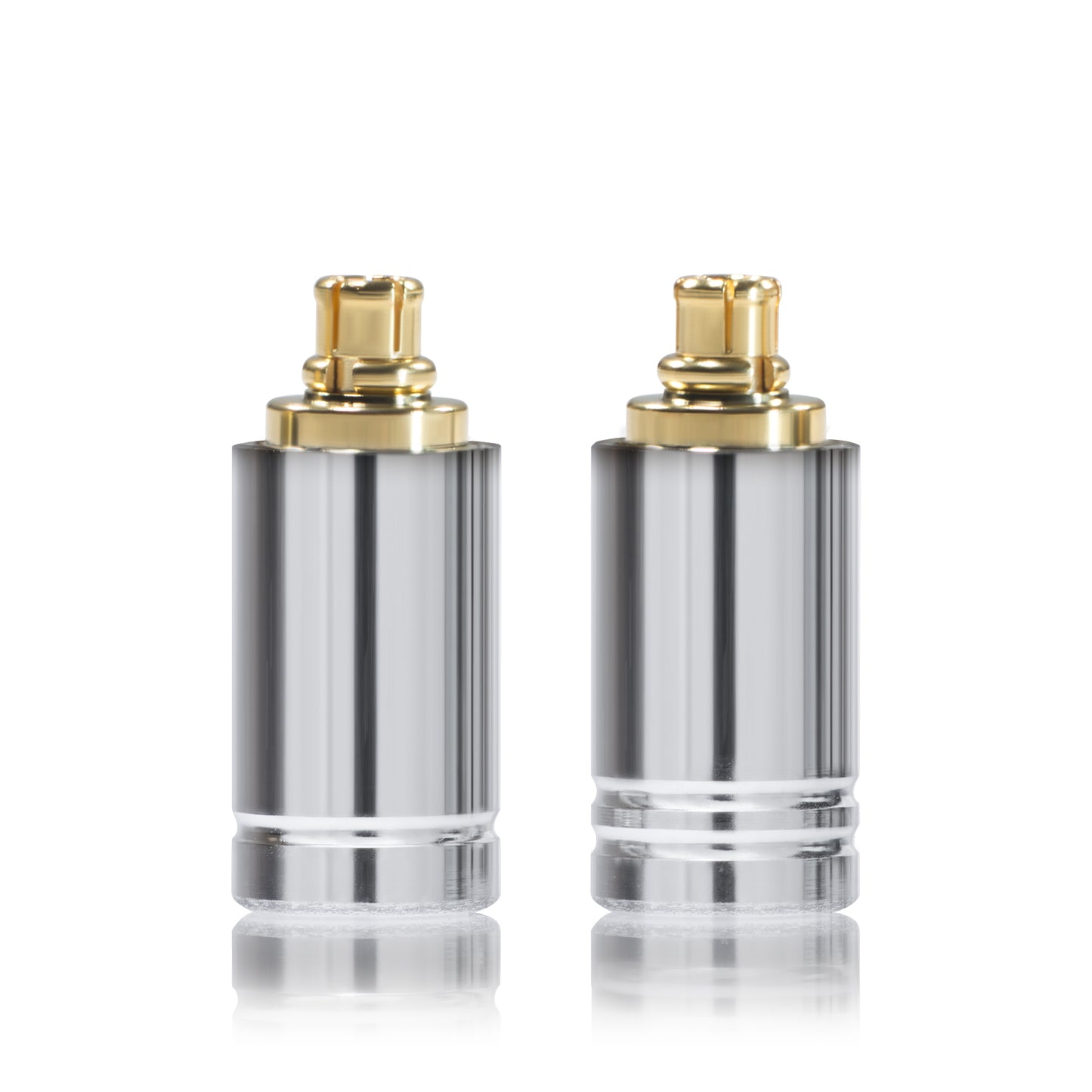

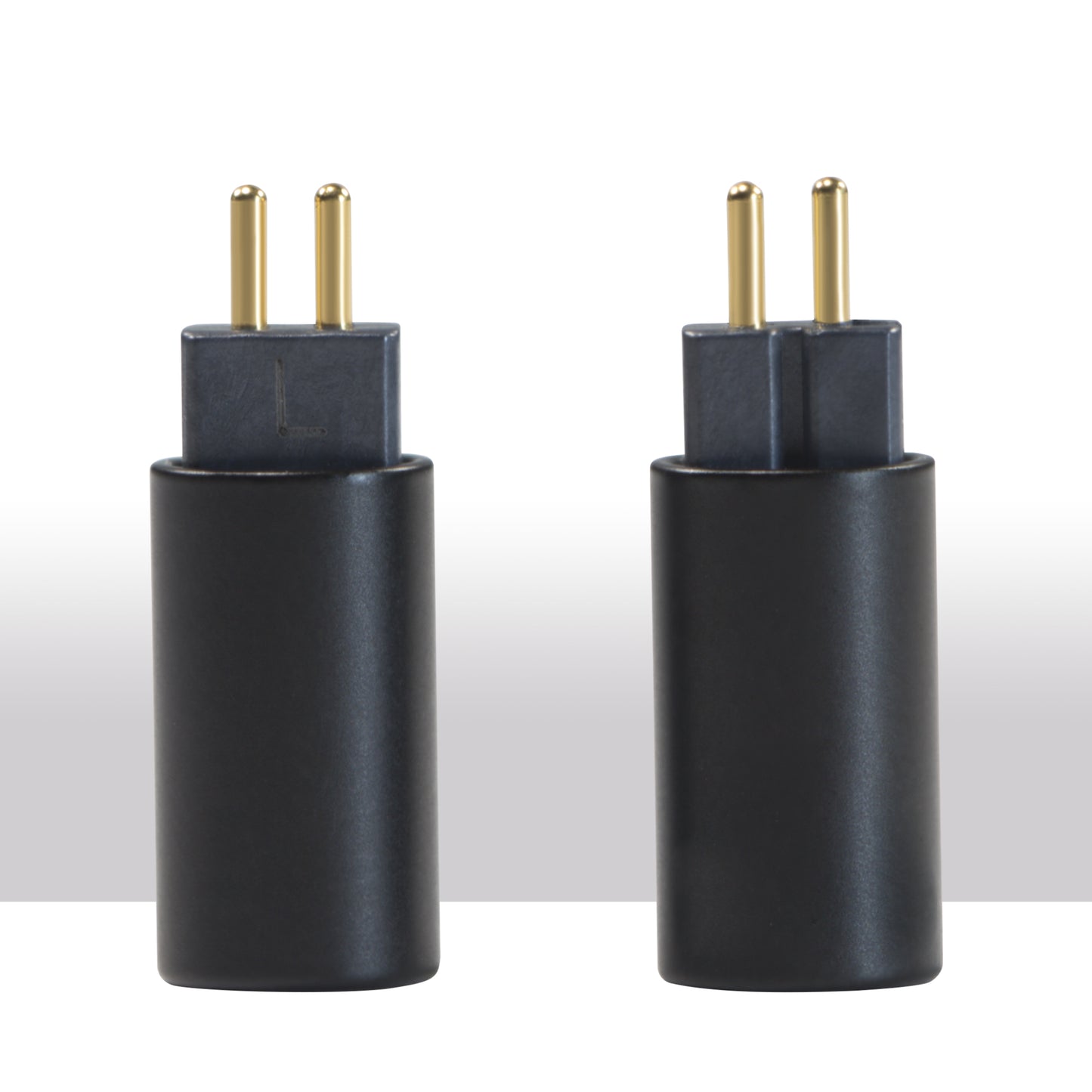

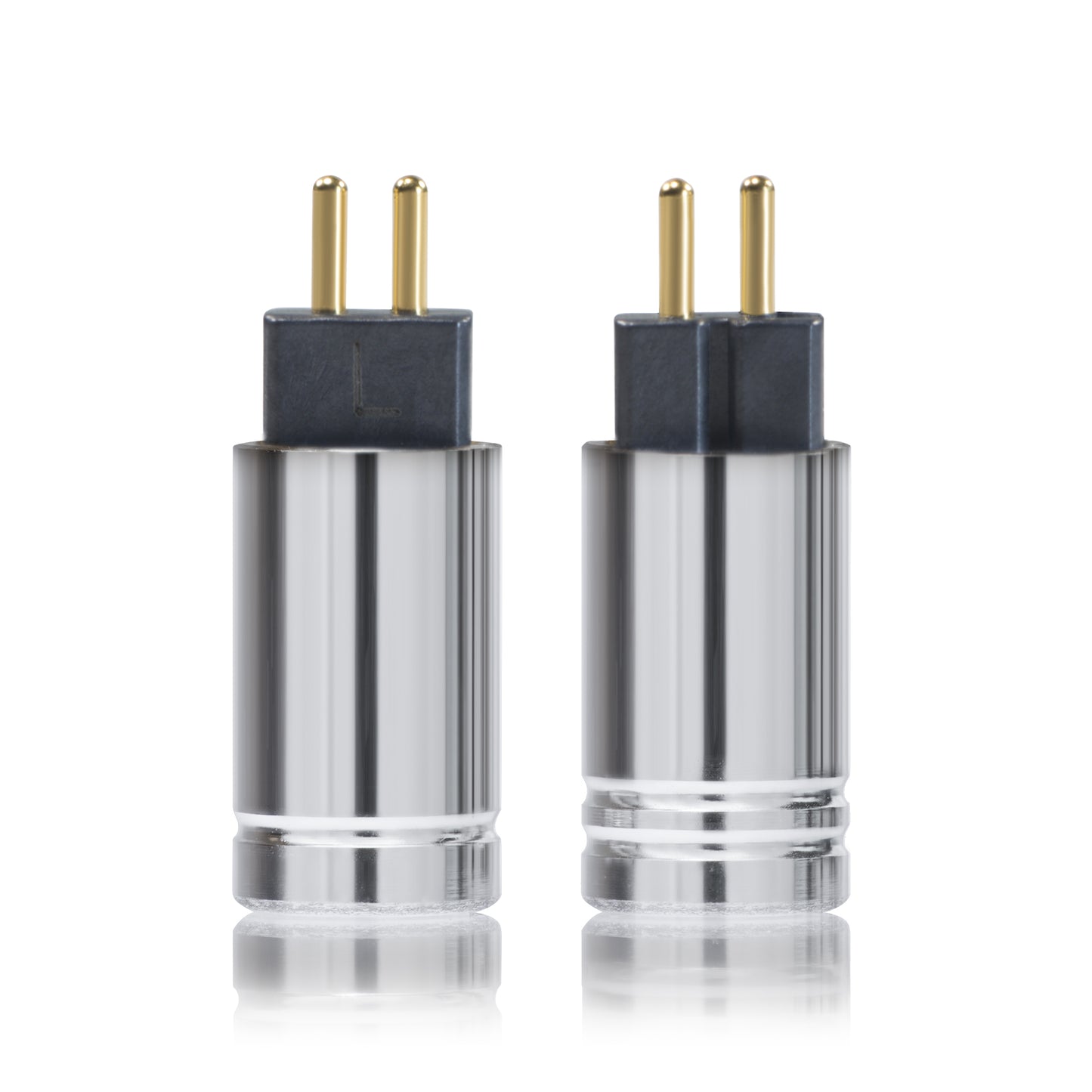

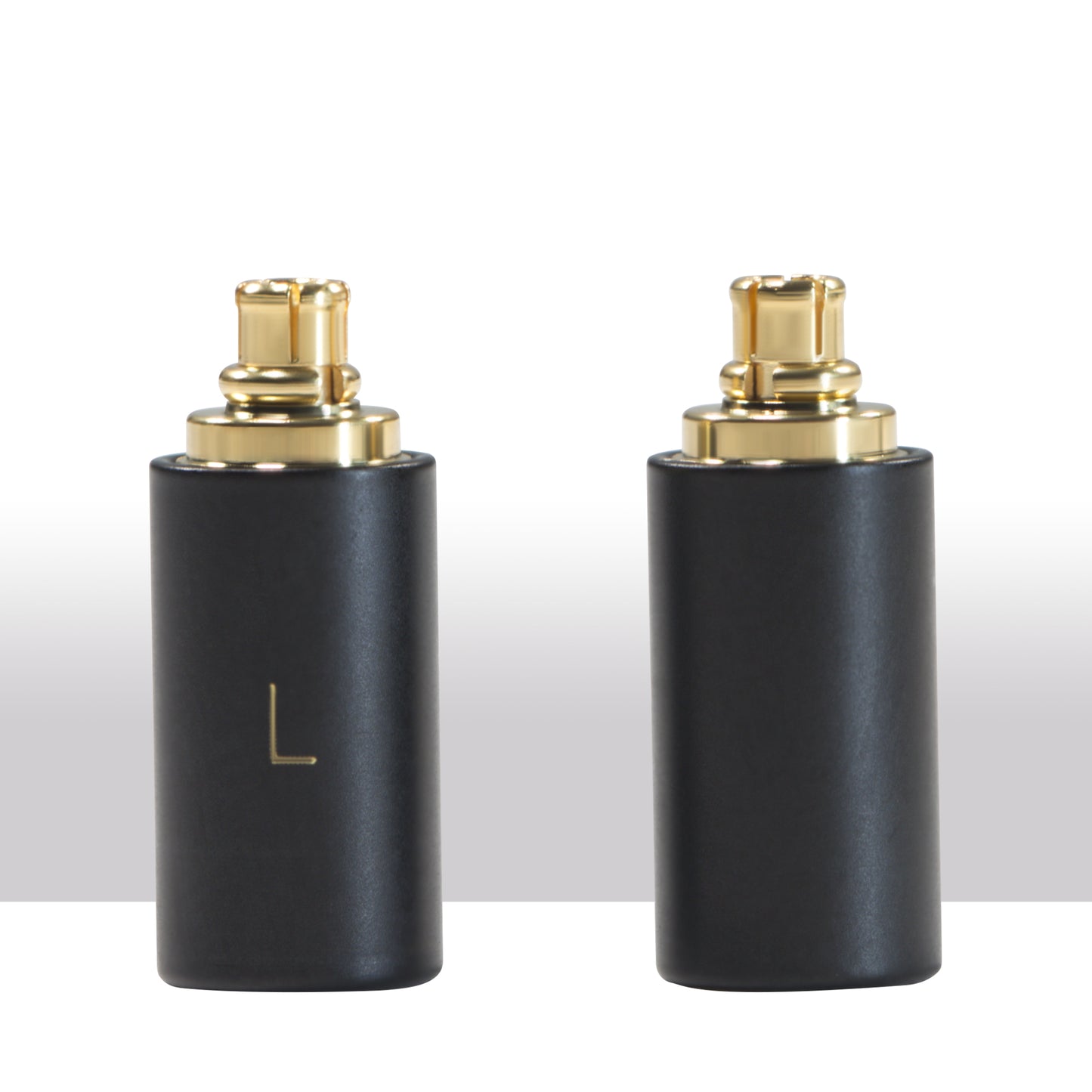

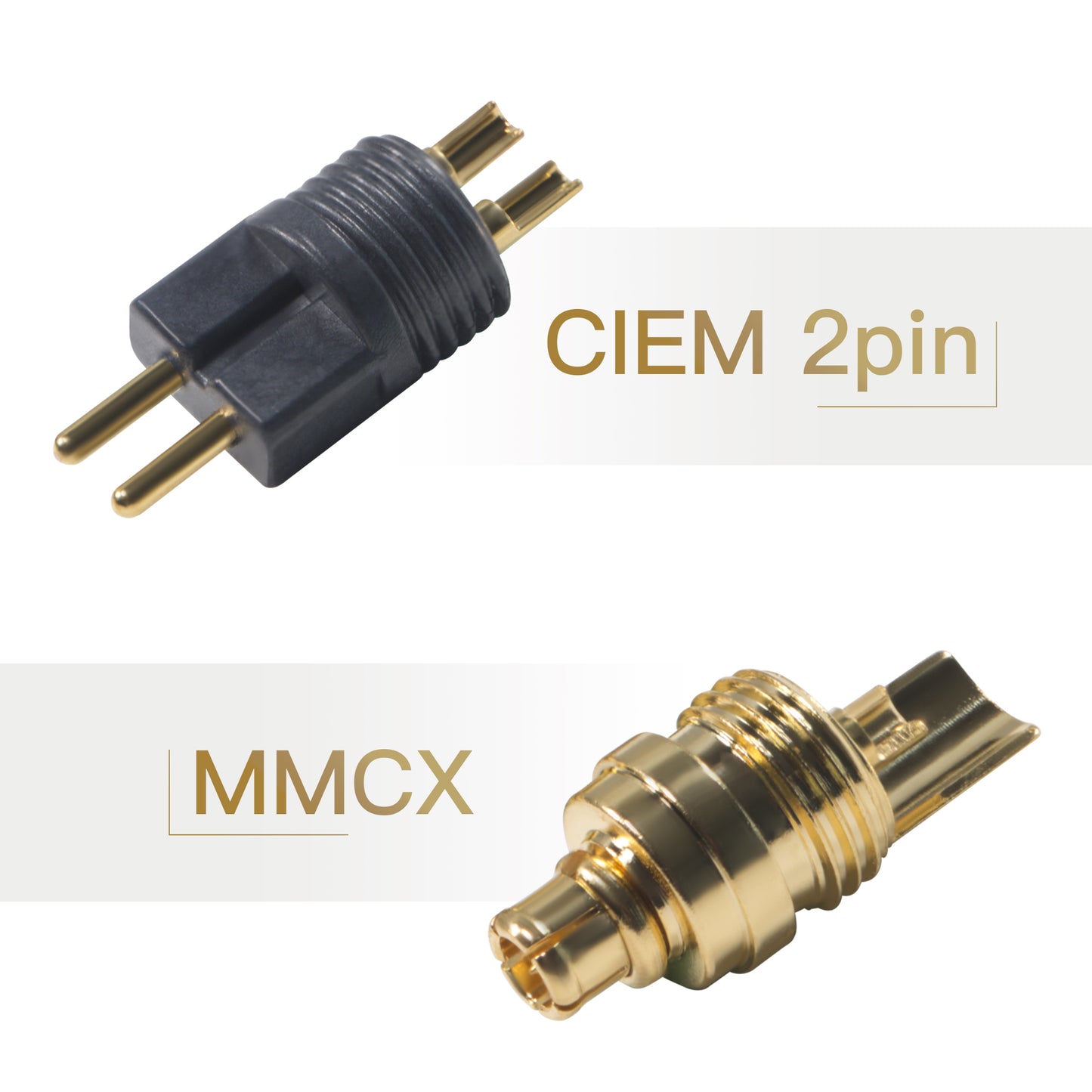

The OE Audio High-Performance IEM Connector (0.78mm/2pin, MMCX)
Material: LCP(Liquid Crystal Polymer)
Conductor: High Conductivity Tellurium Copper/Oxygen-Free Phosphorus Copper
Cladding: 10U Gold Plated
Process: CNC Turning

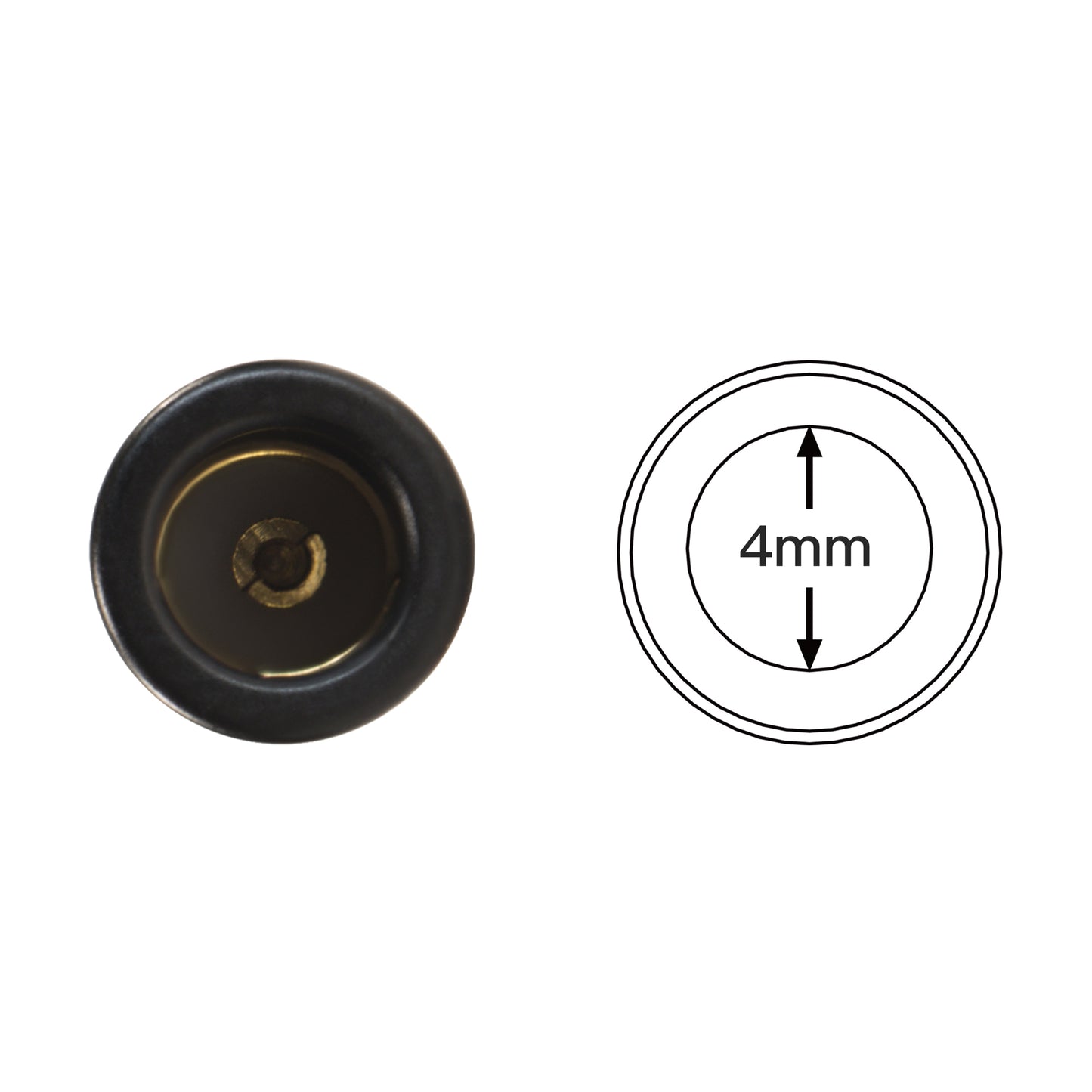

Outlet Diameter: 4mm
Heat Resistance: More than 640°F
The connectors by OE Audio is made for the best performance for audiophiles who love to make their own cables. We achieve high performance by using cutting edge technology and also high-quality raw materials. LCP is used in the molding process of the 0.78 2pin connectors and the shells, which eliminates the interference between the Signal & GND, making the sound clearer. The shells are also made of LCP which even eliminates the interference of the outer signals in the air. High Conductivity Tellurium Copper with high accuracy CNC processing is selected to reduce the signal loss caused by the material its self which maximizes the details. 10U Thickness of Gold is platted on the connectors which are almost the thickest in the world (Oyaide-4U), the 10U thickness of gold-clad makes us adjust the sound with augmented performance in Bass.
Soldering & Installing of the connector is easy since it has good heat resistance and the shells of the connector are using a buckle design which "clicks" when assembling. You can solder the connectors first and then install the shells later which prevents people from forgetting to installing the shells in advance.

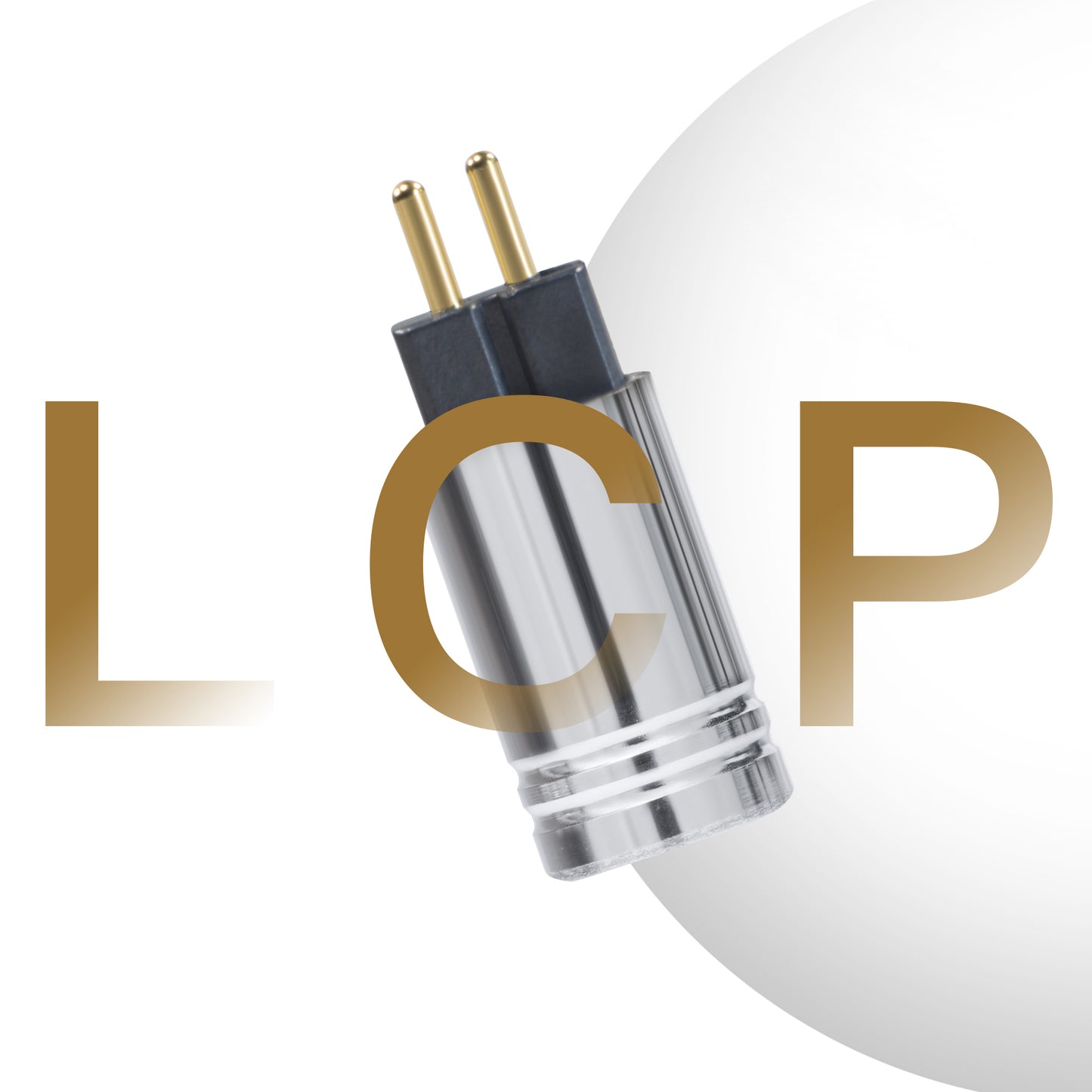

LCP (Liquid Crystal Polymer)
• Superior Heat Resistance Keeps the Connector from Damaging During DIY
• Low Dielectric Constant & Interference Makes Sound Pure
• Stable & Anti-Oxidation Keeps the Sound Performance Unchanged
Conductor & Surfacing
• Tellurium Copper Eliminates Signal Loss Because of High Conductivity
• Accurate CNC Turning with Smooth Surfacing
• 10U Super Thick Gold-Plated, Eliminating influence of the Ni-Based Cladding
• Buckle Design, Ready to Use
2 USD Global Shipping, arrives 7-14 Days after Dispatch.
Malfunction products will be replaced by OEAudio. Items cannot be returned after usage.
